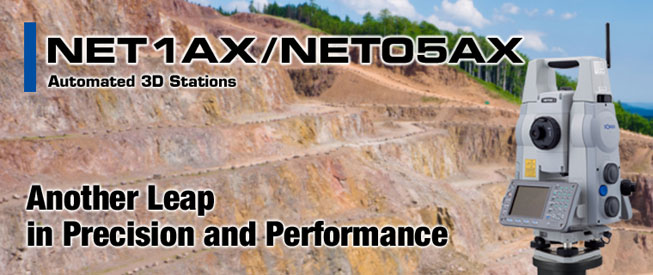

Automated 3D Station NET05AX


Featuring 0.5" angle accuracy and sub-millimeter EDM, the NET05AX offers maximum precision in a broad range of applications.

Sub-millimeter 0.5mm + 1ppm accuracy using reflective sheets within the range of 200m (650ft.).

0.8mm + 1ppm precision with standard prisms up to 3,500m (11,480ft.).

Reflectorless measurement can be performed with 1mm + 1ppm precision up to 100m (320ft.).

0.01mm ultra-fine distance resolution for industrial measurement applications.

1" auto-pointing accuracy with a standard prism.

Enlarged 3.7 inch LCD with automatic brightness control.

Reflector Prescan* can be used to quickly locate target positions, dramatically reducing initial setup time for structural monitoring.

Rapid 2D Monitoring* enables fast recognition of vertical and horizontal movements of targets for real-time subsidence monitoring and alarming applications.
* Available when operating the NET via command operation from an external PC or other devices.

Specialized Auto-Pointing algorithm enhances reliability of periodic monitoring with predetermined prisms.

Constantly tracks a moving prism up to 90km/h at a distance of 100m (56mph at 320ft.).

Built-in target illumination for use in dim lighting conditions.

Robust IP64 dust/water protection.

Long-range Bluetooth® module available as an option.
