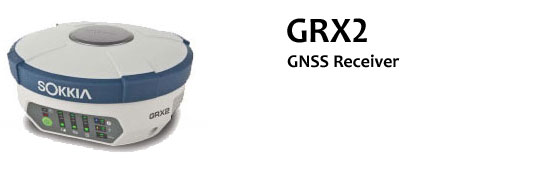

GRX 2 GNSS System




The GRX2 receiver is a fully integrated dual constellation receiver, antenna, radio, and optional cellular modem. In addition, the integrated Bluetooth module, now enhanced for better performance, is designed into a rugged magnesium alloy body.



Fully Scalable Architecture

GRX2’s scalable architecture maximizes your return on investment. It allows you to start with an L1 GPS receiver with a minimal initial cost, which can be upgraded to L1 GPS+GLONASS, to L1/L2 GPS, up to 226-channel L1/L2 GPS+GLONASS receiver at any time you need.

226 Channels for GPS + GLONASS + SBAS
226 tracking channels with Universal Tracking Technology are available for GPS, GLONASS and SBAS signals tracking.
Supports GPS L2C signals.

Triple Wireless Technologies Inside
Three commonly-used wireless technologies can be integrated into the GRX2 receiver.
Digital UHF Modem (receiver/transmitter): for RTK base and rover
GSM/HSPA Modem: for network RTK, and MAGNET Relay
Bluetooth Modem: for controller and other PCInternal “UHF modem” and “UHF+GSM/HSPA modem” are available as factory options.

Other Hardware Features :
22 status LED displays are exceptionally viewable even under bright sunlight.
Data storage in popular SD cards. Large capacity SDHC cards are also supported.
IP67 dust/water protection



Brochure in PDF
GRX2 brochure [1,991 KB]
GRX2 Presentation [909 KB]
