Total Station SET60 Series


Compact X-ellence Station CX Series Tradition Meets Innovation

Feature

  • Superior Waterproof and Dustproof
  • High Accuracy & Long Measuring Range
  • Enhanced Absolute Encoder
  • Versatile Application Programs
  • Dual-Axis Tilt Sensor

Superior Waterproof and Dustproof

IP54
SET60 series conform to IEC Standard IP54. No worry about sudden bad weather.

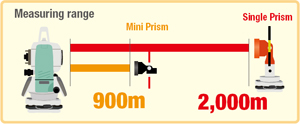

High Accuracy & Long Measuring RangeLong

Long measuring range
  • High accuracy: ±(2mm + 2ppm x D) m.s.e.
  • Long distance: 2,000m with a single prism.





Enhanced Absolute Encoder

SET60 Series adopted an absolute encoder system, which doesn't require 0 set and realizes stable measurement with less reading error.

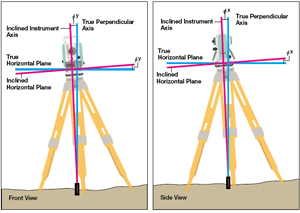

Dual-axis tilt sensor

Dual-axis tilt sensor
The dual-axis tilt sensor monitors inclination of both X and Y axes, and correct horizontal and vertical angle readings automatically.








Extra-large memory capacity for 24,000 points

SET60 Series store the measured data up to 24,000 points.

Versatile Application Functions

On-board data collection, Survey, Layout, Road Calculation, and many more functions.

Remote Elevation Measurement (R.E.M.)

Remote elevation measurement
To easily determine the height of a point where a prism cannot be placed. Take a distance to a prism placed either directly above or directly below the target point, then sight to the target point.






Missing Line Measurement (M.L.M.)

Missing line measurement
To measure horizontal distance, slope distance and height difference between two prisms.







Layout

Layout
Layout function for coordinate measurement and control stakeout and resection measurements.









Road

Road
Road function automatically calculates parameters of a complicated spiral curve and a long distance route simply by defining the start point, end point and curve elements.







Road


Brochures in PDF
SET60 Series Catalogue[1,372KB]
