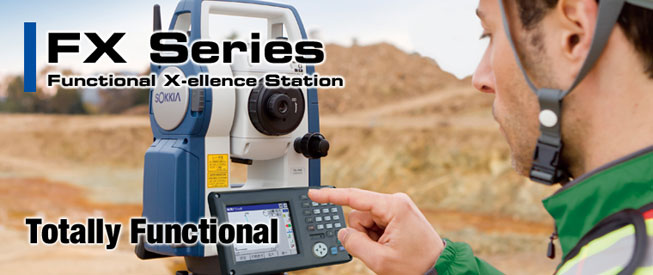

Functional X-ellence Station FX Series


Functional X-ellence Station FX series

Features

  • Windows® CE is Ready in a Lightweight, Compact Body
  • MAGNET™ Field On-Board Application Software
  • RED-tech Technology Reflectorless EDM
  • LongRange Data Communication
  • Advanced Angle Measurement System
  • Long-lasting Battery
  • Waterproof, Rugged, and Operator Friendly
TSshield_mark_E.jpgBefore using the FX Series, it is necessary to perform the user registration to activate the TSshield.Please click here and read the registration manual.

User registration before use[1,083KB]

TSshield*
The industry first! New function to protect your investment.
* This service may not be available in some areas.





Windows® CE is Ready in a Lightweight, Compact Body

  • Windows® CE 6.0 provides a comfortable operating environment.
  • Completely new onboard application "MAGNET Field" is installed as standard feature.

MAGNET™

●Cloud-based Solutions for Precise Positioning
MAGNET™ is a software family that uses the "cloud" to seamlessly connect data in the field and office.
Real-time connections. When you need it. Where you need it. For data exchange, communications, asset tracking and more.

●MAGNET™ Field
Data collection, stakeout, roads, and coordinate geometry.

TSshield_mark_E.jpg TSshield_mark_E.jpg TSshield_mark_E.jpg


TSshield_mark_E.jpgRED-tech Technology Reflectorless EDM

  • Fast distance measurement of 0.9s regardless of object.
  • SOKKIA traditional pinpoint precision in reflectorless distance measurement.
  • Reflectorless operation from 30cm to 500m.
  • Coaxial EDM beam and laser-pointer provide fast and accurate aiming.
  • Ensures accuracy even with reflective sheets.


LongRange Data Communication*

  • TSshield_mark_E.jpgThe FX series of total stations features Bluetooth® Class1 wireless technology for reliable data communications.
  • All FX data is instantly available at the Bluetooth-equipped controller.
*Offered as an option in some areas.


Advanced Angle Measurement System

  • FX features SOKKIA's original absolute encoders that provide long-term reliability in any job site condition. Dual-axis compensator ensures stable measurements even when setup on uneven terrain.
  • Sokkia's traditional motion clamp and tangent screw are employed to ensure stable angle measurement.
  • FX-101 and FX-102 feature groundbreaking IACS (Independent Angle Calibration System) technology for extremely reliable angle measurement.

Long-lasting Battery

  • Uses the same high capacity battery as MDTS and GNSS.
  • One battery provides 20 hours of power.

Waterproof, Rugged, and Operator Friendly

  • TSshield_mark_E.jpgIP65 dustproof / waterproof rating.
  • Metal chassis and heavy duty handle.
  • Standard usage temperature range -20 to +60°C.
  • New star key [★] instantly brings up functions.touch panel
  • Trigger key lets you take a series of measurements without taking your eye off the telescope.
  • Control panel consists of 10-key pad with color LCD touch screen display.*2
  • USB type A / mini B as well as serial ports.
  • Green / Red telescope guide light enhances work efficiency in a range up to 150m.
  • Built-in laser plummet with five brightness levels is equipped for quick instrument setting in all lighting conditions.*3
*1 Low and High temperature models available as options.
*2 Face 2 is only touch screen display. Control panel location may vary depending on region or model.
*3 Option.


TSshield_mark_E.jpg TSshield_mark_E.jpg TSshield_mark_E.jpg TSshield_mark_E.jpg

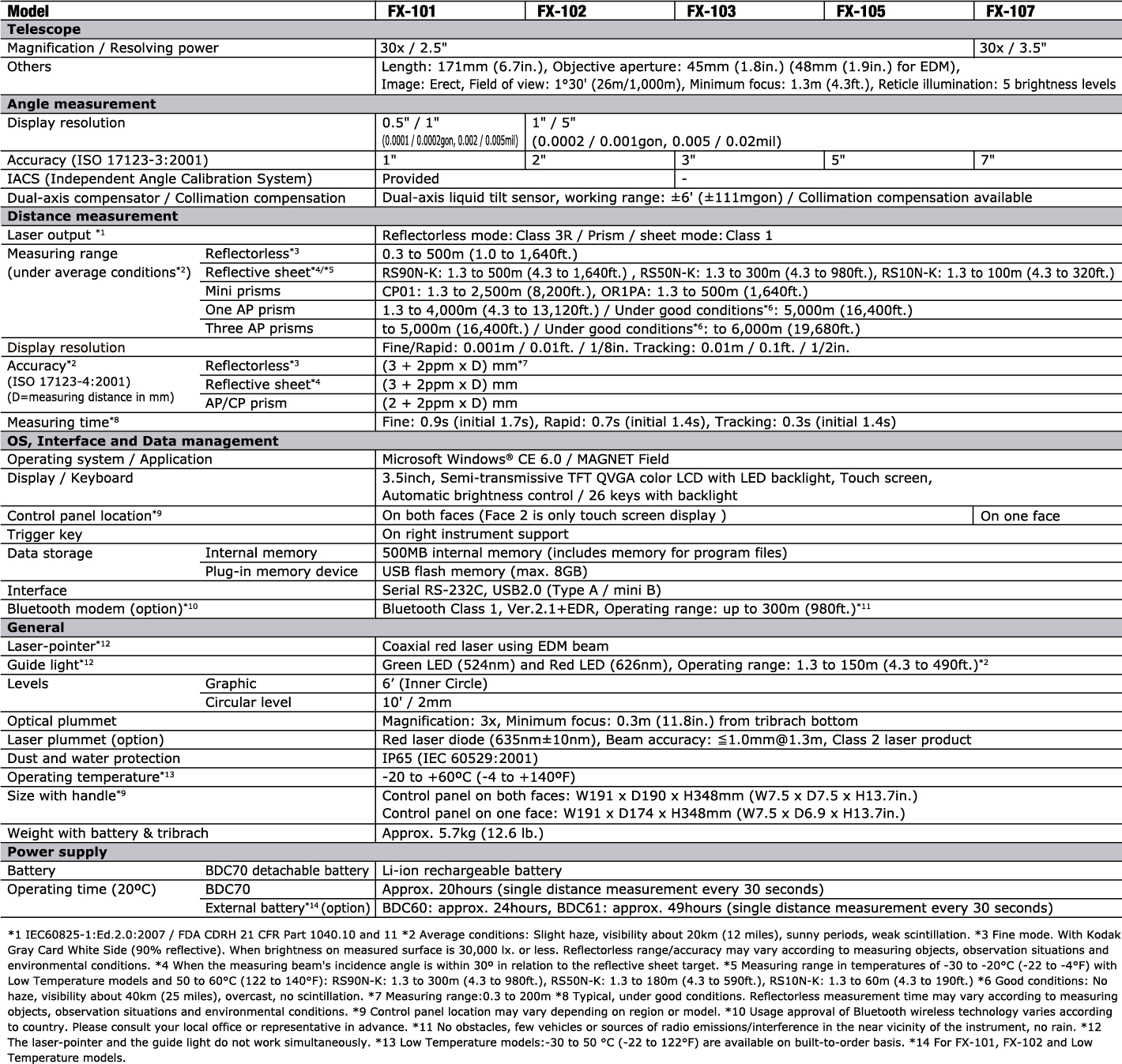

Specifications
