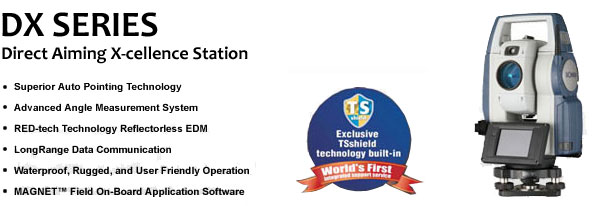

Robotic Total Station DX Series


Compact X-ellence Station CX Series Tradition Meets Innovation

Get the Job Done Easily and Quickly in any Environment

New Auto Pointing "Direct Aiming Technology"
DX series employed "Direct Aiming Technology" featuring a new intelligent algorithm that automatically aim to the prisms with precisely corrected angle readings. The technology works even in dim or dark conditions where the prism is difficult to be found. Whatever the job requires and wherever operators must go, the DX makes your job done easier and faster still maintaining the accuracy.


New DX Direct Aiming technology supports
• DX series provides consistent auto pointing accuracy speed regardless of operators skill levels.
• More than what human Eyes can do
• Higher Productivity in your job field
• Easy “TOPO” operation
• Easy “Stake-out” operation
• Mesh Scan Operation

Easy “TOPO” operation
Just “Rough Aim” and “Press Trigger button” to get precise aiming and measurement to prism target. 		Easy “Stake-out” operation
Stake-out can be easily done by automatic turning and guide light. 		Mesh Scan Operation*
“Simple” & “Easy” Mesh Scan in your field work. *Supported by MAGNET Field on-board

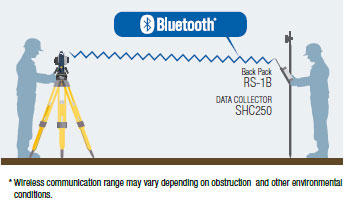

LongRange Data Communication
• The DX series of total stations feature Bluetooth ® Class1 wireless technology for reliable data communications.


RED-tech Technology Reflectorless EDM
• Reflectorless operation from 30cm to 1,000m*.
• SOKKIA’s traditional pinpoint precision in reflectorless distance measurement.
• Fast distance measurement of 0.9s.
• Coaxial EDM beam and laserpointer provide fast and accurate aiming.
• Ensures accuracy even with reflective sheets.
* With Kodak Gray Card white side (90% reflective).
Brightness level at object surface: < =500 lx.

Advanced Angle Measurement System
• SOKKIA's original absolute encoders providelong-term reliability in any job site condition.
• DX-101 and DX-102 feature groundbreaking IACS (Independent Angle Calibration System) technology for extremely reliable angle measurement.


Waterproof, Rugged, and User Friendly Operation
• IP65 dustproof / waterproof rating.
• Standard usage temperature range -20 to +50°C.
• Star key [H] instantly brings up functions.
• Trigger key lets you take a series of measurements without taking your eye off the telescope.
• Control panel consists of 26-key board with color LCD touch screen display.*1
• USB type A / mini B as well as serial ports.
• Green / Red telescope guide lights provide efficient guidance in a range up to 150m.
• Built-in laser plummet with five brightness levels is equipped for quick
• instrument setting in all lighting conditions.*2
*1 Face 2 is only touch screen display. Control panel configuration may vary depending on region or model.
*2 Offered as an option in some areas.
extra battery   extra battery
MAGNET™ Family
• Cloud-based Solutions for Precise Positioning*
MAGNET™ is a software family that uses the “cloud” for seamless data connection between the field and office, in Real-time, when and where you need, for data exchange, communications, asset tracking and more.
• MAGNET™ Field
Powerful on-board software that covers full functions for surveying and engineering tasks. MAGNET™ Field handles data collection, stake out, roads and coordinate geometry.

Standard Accessories
• DX main unit • Battery x2 (BDC70) • Battery charger (CDC68) • Power Cable
• Lens cap • Lens hood • Tool pouch • Screwdriver • Lens • brush • Adjusting pin x2
• Cleaning cloth • Operation manuall • USB memory • Laser caution sign-board
• Carrying case • Carrying strap x2

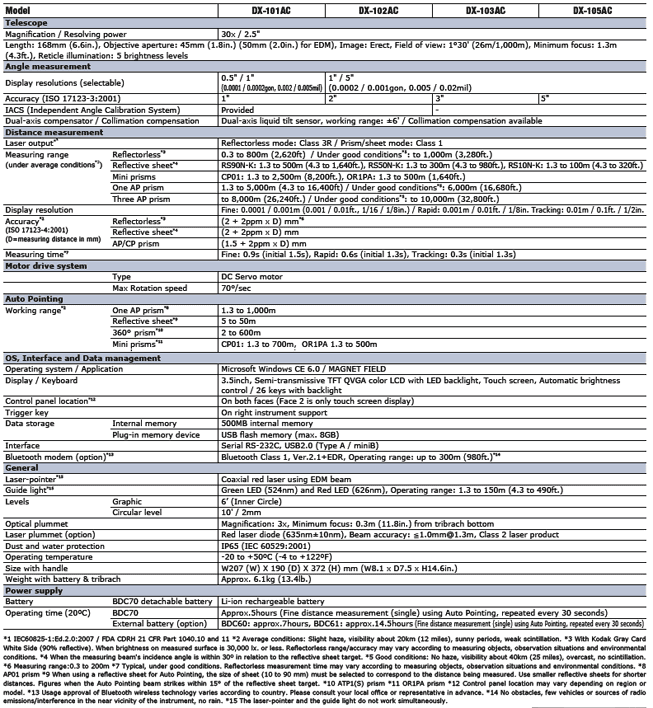

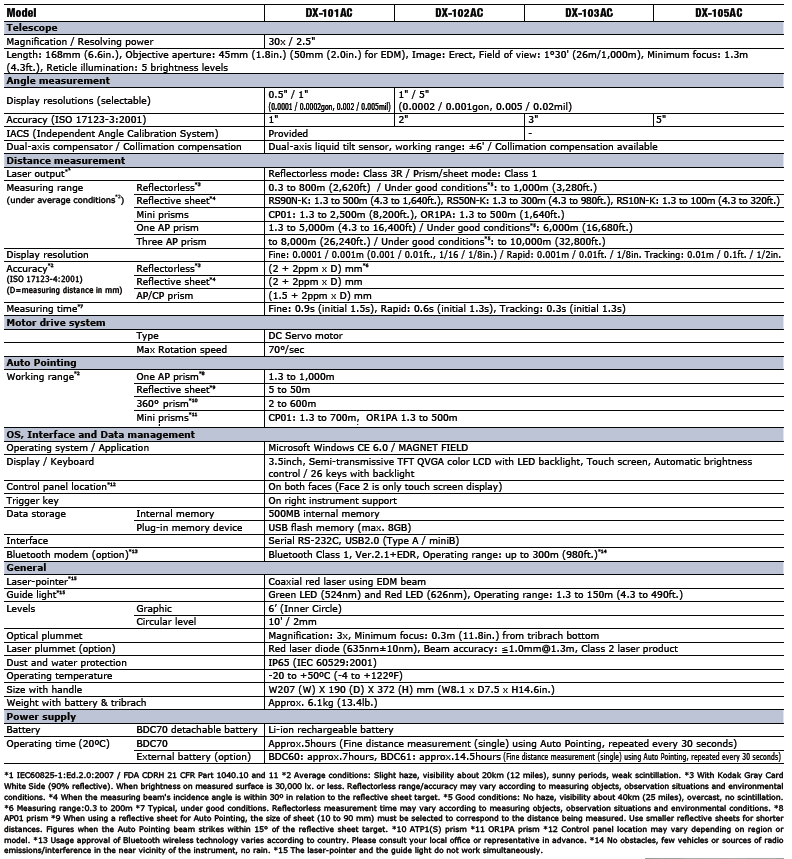

Specifications


Brochures in PDF
DX series[1.42 MB]
