Robotic Total Station SX-Series


Compact X-ellence Station CX Series Tradition Meets Innovation

Rapidly Points. Accurately Measures.

Superior Auto-Pointing Technology
Incorporating cutting-edge laser and image processing technologies, the SX provides extremely reliable auto-pointing capability. Even in dense woods or in dim conditions, the SX rapidly finds a prism and accurately measures its position, ensuring maximum work efficiency under all job site environments. The SX provides a wide auto-pointing range from 1.3m to 1,000m with a standard prism.

extra battery
Simple and Easy

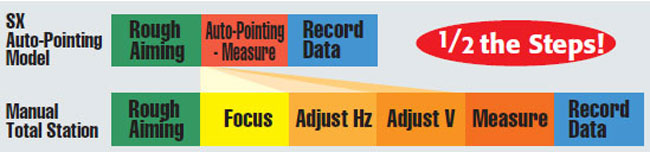

Point the SX in the general direction of the prism, press the trigger key, and the SX automatically points to the prism center. This enables even a beginner to rapidly take accurate measurements.

Faster, Less Effort
By eliminating the need for the focusing telescope and adjusting fine motion screws, the SRX dramatically increases survey speed.
extra battery

Auto-Tracking Model feature

LongRange Data Communication
• The SX series of total stations features Bluetooth® Class1 wireless technology for reliable data communications.
• All SX data is instantly available at the Bluetooth-equipped controller.
* Wireless communication range may vary depending on obstruction and other environmental conditions.

RC-PR5 Remote Control System
The RC-PR5 On-Demand Remote allows for rapid prism search regardless of your position. A built-in directional sensor constantly monitors the prism movement so the SX can turn left or right whichever direction is closer.

Precision 360° Prisms
Advanced 6-prism configuration provides unsurpassed measurement precision due to a minimum offset of each prism center. ATP1 fits a range pole; ATP1S sliding prism is designed for a pin pole.

extra battery extra battery extra battery

Advanced Angle Measurement System
• SX features SOKKIA's original absolute encoders that provide long-term reliability in any job site condition. Dual-axis compensator ensures stable measurements even when setup on uneven terrain.
• SX-101 and 102 feature groundbreaking IACS (Independent Angle Calibration System) technology for extremely reliable angle measurements.

extra battery
RED-tech Technology Reflectorless EDM
• Fast distance measurement of 0.9s regardless of object.
• SOKKIA traditional pinpoint precision in reflectorless distance measurement.
• Reflectorless operation from 30cm to 800m.
• Coaxial EDM beam and laser-pointer provide fast and accurate aiming.
• Ensures accuracy even with reflective sheets.

Ultra-Narrow Laser Beam
Ultra-narrow red laser beam is also used for the laser pointer, ensuring exceptional pinpoint precision in reflectorless measurement.
extra battery

 Waterproof, Rugged, and Operator Friendly
• IP65 dustproof / waterproof rating.
• Metal chassis and heavy duty handle.
• Standard usage temperature range -20 to +50°C.
• New star key [��] instantly brings up functions.
• Trigger key lets you take a series of measurements without taking your eye off the telescope.
• Control panel consists of 10-key board with color LCD touch screen display.
• USB type A / mini B as well as serial ports.
• Green / Red telescope guide lights provide efficient guidance in a range up to 150m.

extra battery extra battery

■MAGNET™
Cloud-based Solutions for Precise Positioning
MAGNET™ is a software family that uses the “cloud” to seamlessly connect the field and office for data exchange, communications, asset tracking and more.. Real-time connections. When you need it. Where you need it.

MAGNET™ Field
Data collection, stakeout, roads, and coordinate geometry.

Standard Accessories
●SX main unit ●Battery (BDC70)
●Battery charger (CDC68)
●Power Cable ●Lens cap ●Lens hood
●Tool pouch ●Screwdriver
●Lens brush ●Adjusting pin x2
●Cleaning cloth ●Operation manual
●USB memory ●Laser caution sign-board
●Carrying case ●Carrying strap

extra battery

TSshield
An industry first! New function to protect your investment TSshield is a standard feature on all new model
SOKKIA total stations. Its advanced communication system provides new opportunities to secure and maintain your instrument. For more detail of TSshield, please click here.

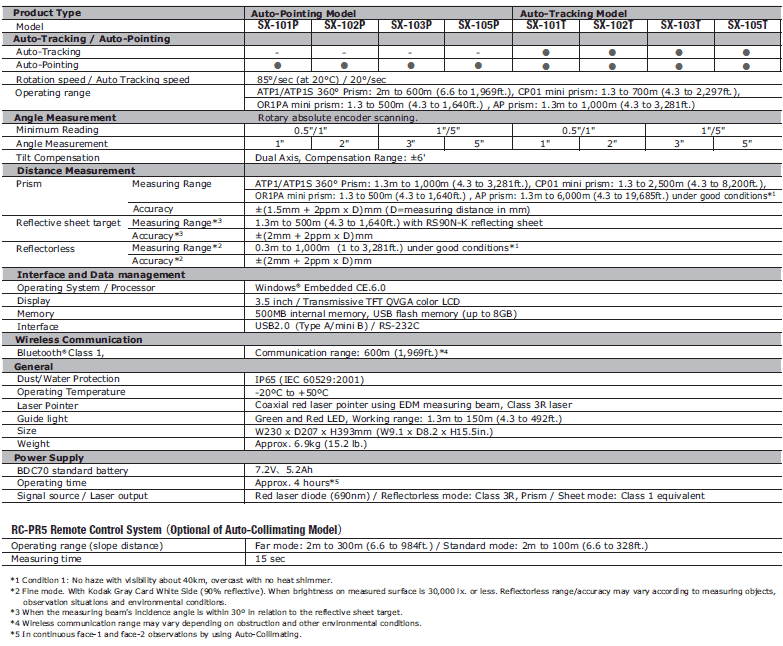

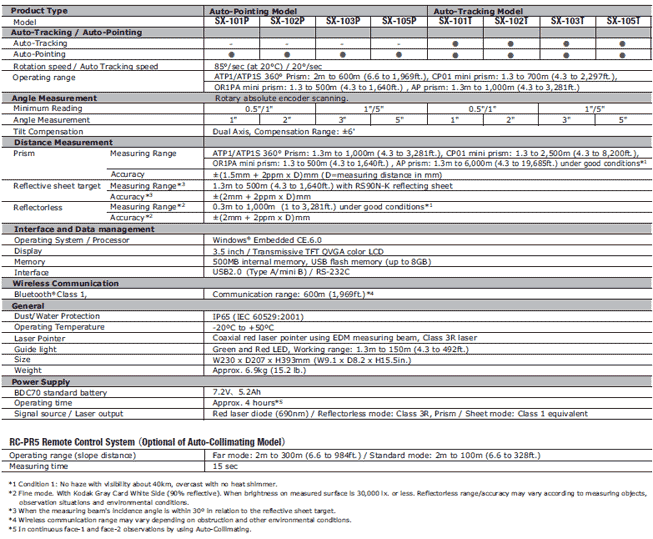

Specifications


Brochures in PDF
SX series[1.03 MB]
