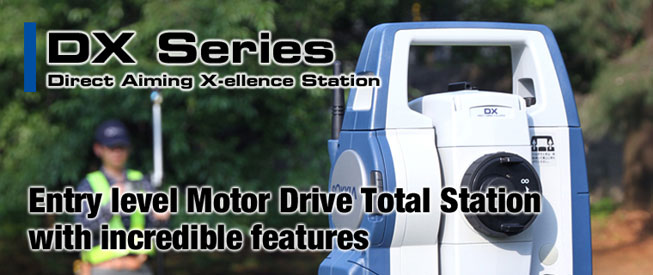

Direct Aiming X-ellence Station DX Series


Compact X-ellence Station CX Series Tradition Meets Innovation


Feature

  • Auto-tracking function*
  • Superior Auto Pointing "Direct Aiming Technology"
  • Advanced Angle Measurement System
  • RED-tech Technology Reflectorless EDM
  • LongRange Data Communication
  • Dust and Water Protection IP65
  • MAGNET™ Field On-Board Application Software
  • TSshield™ Advanced Security and Maintenance
* Auto-Tracking function can be added by Upgrade Kit.

TSshield_mark_E.jpgBefore using the DX Series, it is necessary to perform the user registration to activate the TSshield.Please click here and read the registration manual.

User registration before use[1,083KB]

TSshield*
The industry first! New function to protect your investment.
* This service may not be available in some areas.

Auto-tracking function enhances your productivity and efficiency dramatically

The DX series locks and searches prism constantly, under the smooth control of one
person at rover side. The instrument automatically focuses on the target, eliminating
manual focusing adjustment, thus increasing measurement speed and enhancing productivity.



Remarkable differences in productivity

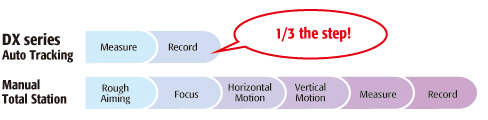

TSshield_mark_E.jpgTOPO
Auto-tracking function the DX series of improves workflow of one-person TOPO survey drastically. You just hold prism pole and data collector and make swift, uncomplicated survey on numerous points; the steps necessary to complete the job are decreased by more than 30 percent as illustrated below.

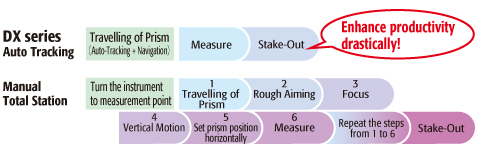

TSshield_mark_E.jpg●Stake-out
The DX series Auto-tracking Feature also brings advantages for one-man stake-out survey. Simply by moving the data collector, you'll be able to find the stake-out points easily and quickly, thus ensuring high productivity and accuracy for your stake out jobs. The difference in productivity can be clearly seen in the chart below.

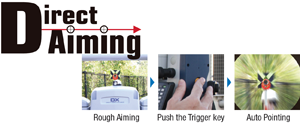

New Auto-pointing "Direct Aiming Technology"

TSshield_mark_E.jpgDX series employed "Direct Aiming Technology" featuring a new intelligent algorithm that automatically aims to the prisms with precisely corrected angle readings.

The technology works even in dim or dark conditions where the prism is difficult to be found. Whatever the job requires and wherever operators must go, the DX makes your job done easier and faster still maintaining the accuracy.

LongRange Data Communication

  • TSshield_mark_E.jpgThe DX series of total stations feature Bluetooth® Class1 wireless technology for reliable data communications.
*Wireless communication range may vary depending on obstruction and other environmental conditions.

RED-tech Technology Reflectorless EDM

  • TSshield_mark_E.jpgReflectorless operation from 30cm to 1,000m.
  • SOKKIA's traditional pinpoint precision in reflectorless distance measurement.
  • Fast distance measurement of 0.9s.
  • Coaxial EDM beam and laser pointer provide fast and accurate aiming.
  • Ensures accuracy even with reflective sheets.

Advanced Angle Measurement System

  • TSshield_mark_E.jpgSOKKIA's original absolute encoders provide long-term reliability in any job site condition.
  • DX-101 and DX-102 feature groundbreaking IACS (Independent Angle Calibration System) technology for extremely reliable angle measurement.

Rugged and User Friendly Operation

  • TSshield_mark_E.jpgIP65 dustproof / waterproof ratings.
  • Standard usage temperature range -20 to +50°C.
  • Control panel consists of 26-key board with color LCD touch screen display.
  • Green / Red telescope guide lights provide efficient guidance in a range up to 150m.


MAGNET™

●Cloud-based Solutions for Precise Positioning*
MAGNET™ is a software family that uses the "cloud" for seamless data connection between field and office, in Real-time, when and where you need, for data exchange, communications, asset tracking and more.
*Cell modem or WIFI is required for data transfer from cloud to MAGNET with your data collector

●MAGNET™ Field
Powerful on-board software that covers full functions for surveying and engineering tasks. MAGNET™ Field handles data collection, stake out, roads and coordinate geometry.

TSshield_mark_E.jpg TSshield_mark_E.jpg TSshield_mark_E.jpg

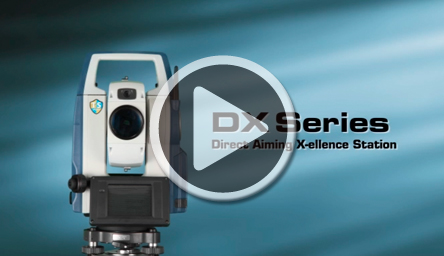

Movie

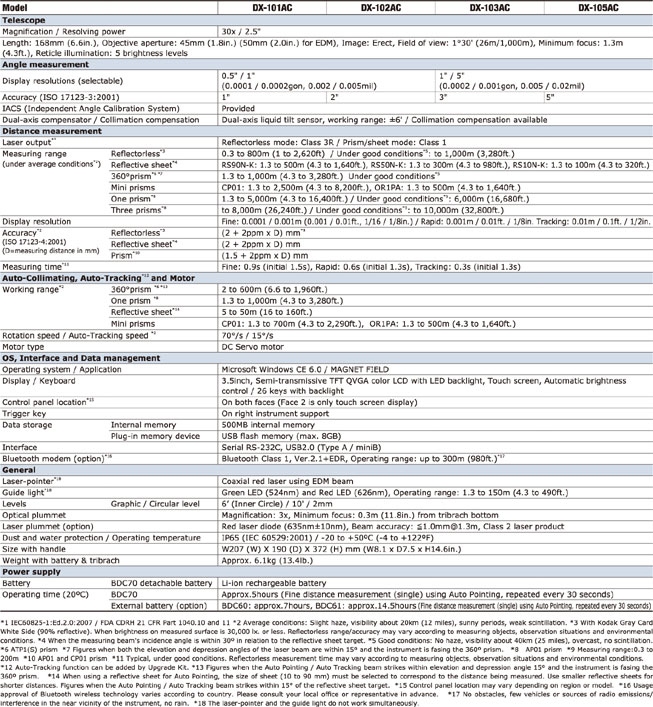

Specifications


Brochures in PDF
DX series[1.563 MB]
